Zephyrus Platform

High Power VISIBLE Diode Laser Module

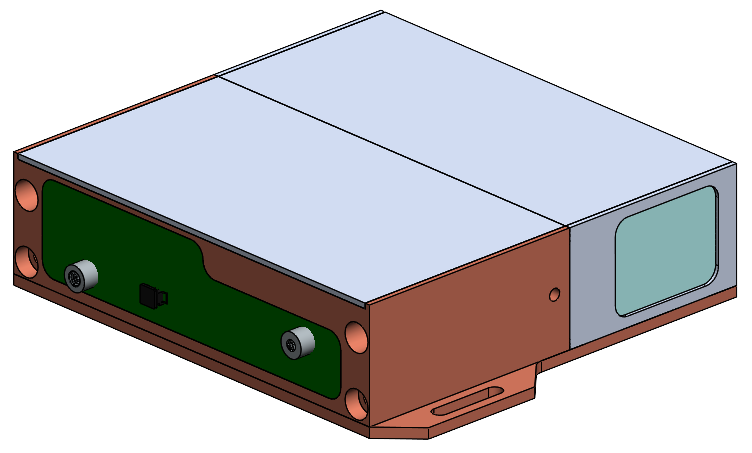

Zephyrus is our technology platform for high power visible laser modules, either fiber coupled and free space collimated. Designed to meet the highest standard of reliability, robustness and long lifetime, it can be easily customized to meet specific applications’ needs. Each block performs a specific optical beam shaping function, thus making the module versatile to create tailored-made OEM solutions.

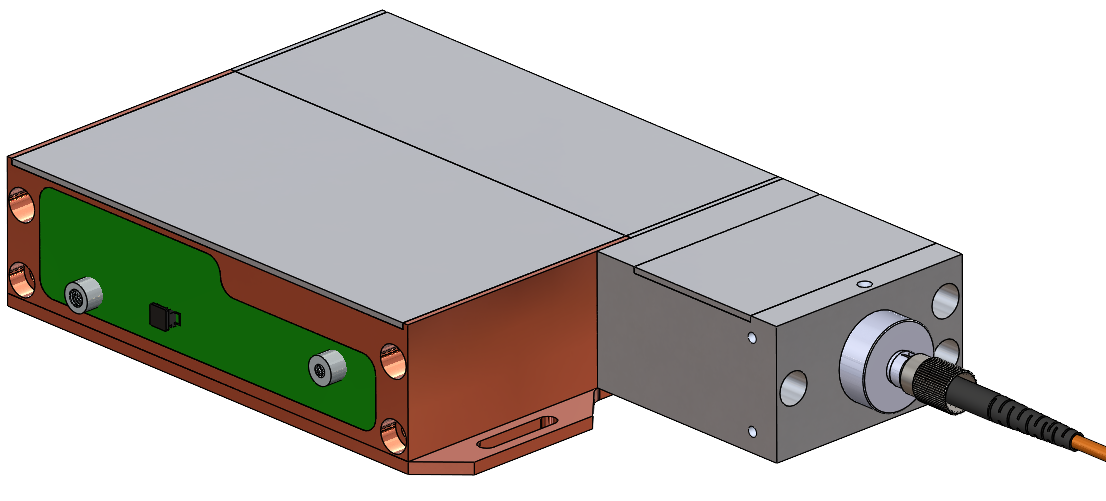

Fiber coupled 35W version

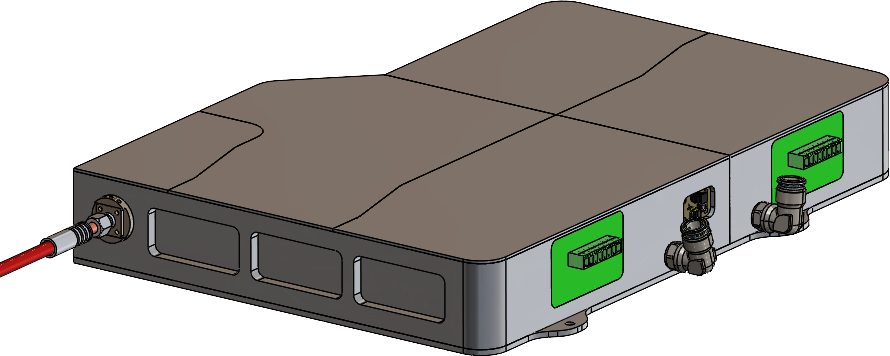

200W version

Features & Benefits

  • Fiber coupled down to 100um NA 0.22
  • Free space beam with low residual divergence <1.5mrad f.a
  • Single or multiple wavelength design
  • Temperature sensor, aiming beam, fiber detect
  • Sealed, passive cooled housing

Accessories

  • Fixed or zoom focusing head
  • Collimation optics for scan head interface
  • Collimation optics for long distance application, fixed or zoom
  • In-line pyrometer and/or camera module

Technical specifications

VIOLETBLUEGREENRED
Wavelength (nominal)405 nm450 nm520 nm635 nm
Wavelength range400/410 nm440/460 nm510/535 nm630/645 nm
Output power free-space7W ÷ 200W40W ÷ 200W12W ÷ 200W7W÷200W
Res. divergence full-angle<1.5 mrad<1.5 mrad<1.5 mrad<1.5 mrad
Output power fiber coupled6W ÷ 200W35W ÷ 200W10W ÷ 200W6W ÷ 200W
Fiber core (min)*200 um100 um ÷ 200 um100 um ÷ 200 um200 um
Fiber NA0.220.220.220.22
Fiber connector**FC / D80FC / D80FC / D80FC / D80
ApplicationsMedical diagnostics
Forensic
Stereolithography
Sensing		PCB soldering
PCB cutting
Stereolithography
Projection
Defense
Plastic welding
Pumping		Medical
Surgery
Projection
Defense
Laser tag
Vascular treatment

Stereolithography

Medical
Endoscopy
Physiotherapy
Biostimulation
Projection

Stereolithography

*Optical fiber not included

**Depending on the model

Download the Zephyrus Platform brochure for complete details and the mechanical drawings

Zephyrus Platform Brochure
