HIGH POWER FIBER COUPLED BLUE LASER SYSTEM UP TO 200W

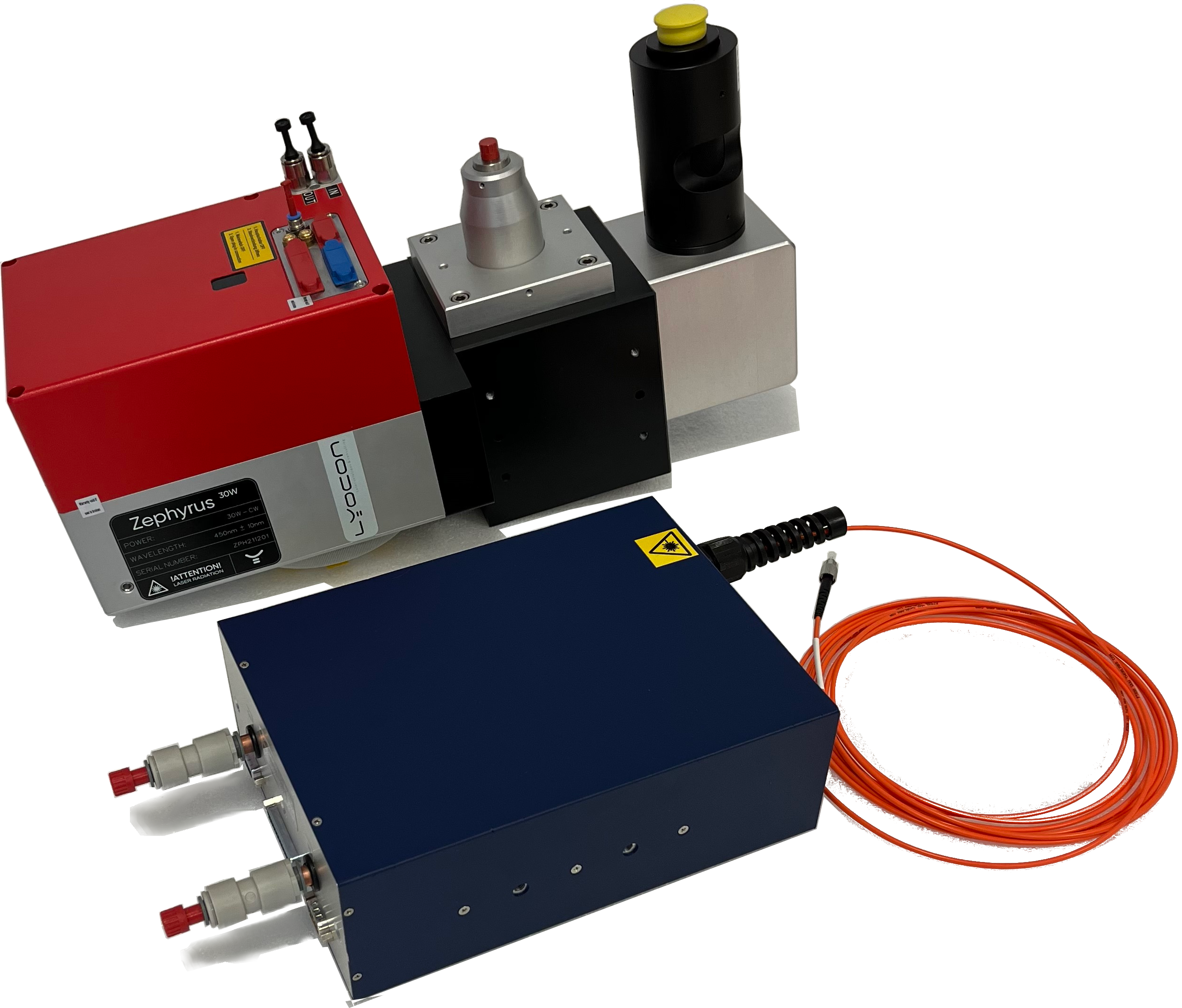

ZEPHYRUS is a fiber coupled laser system able to deliver up to 200W CW @450nm in a 200µm optical fiber. The system up to 35W are also available in the 100um optical fiber version. It includes the ZEPHYRUS PLATFORM BLUE module, plus the laser driver, the cooling plate for water cooling and the optical fiber.
The latest laser for material processing

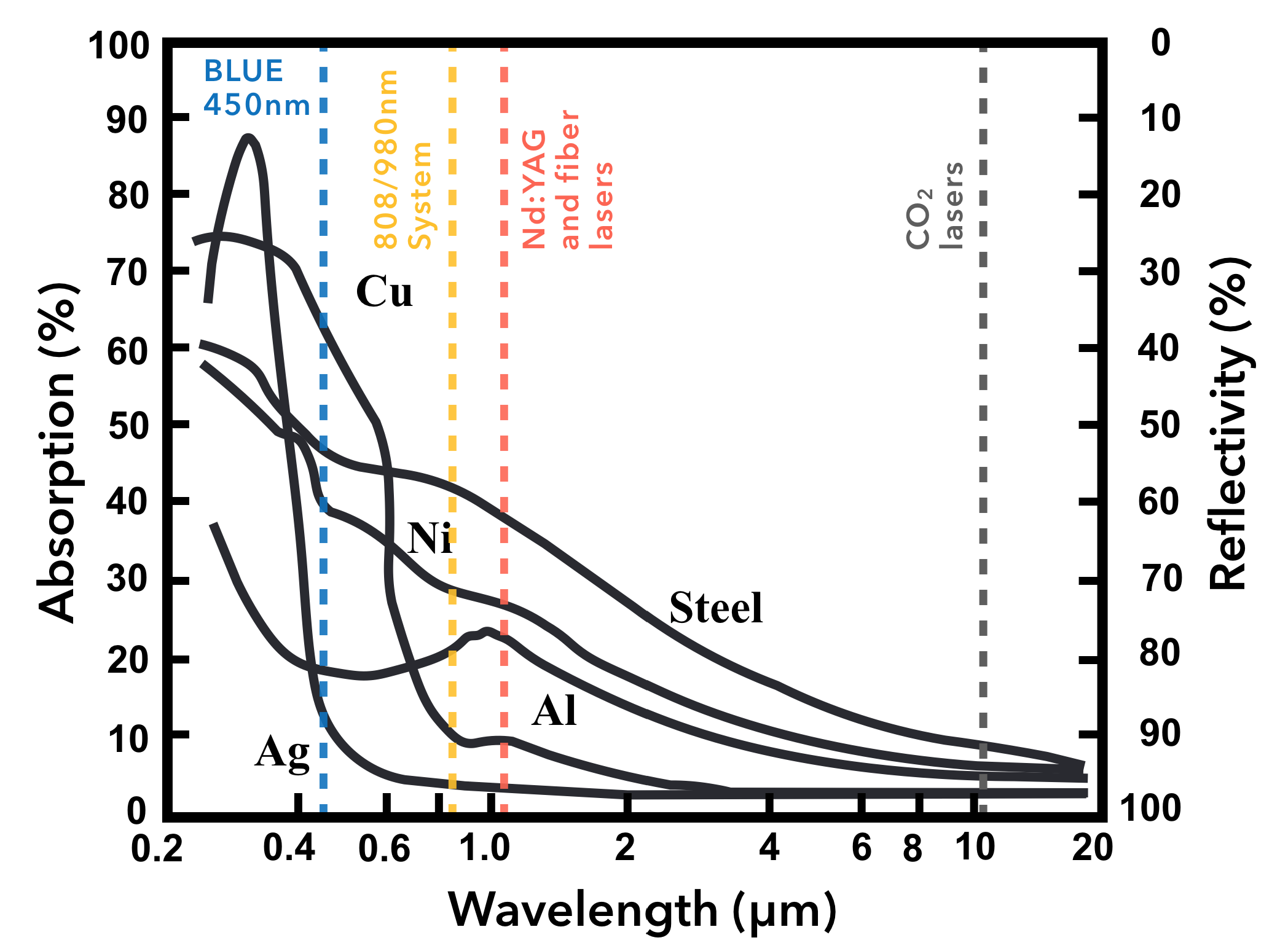

Thanks to the strong absorption of the BLUE 450nm radiation by the highly reflective materials used in the PCB manufacturing process – up to 20x compared to IR wavelengths – ZEPHYRUS is the state-of-the-art solution for soldering of THT and SMD components, depaneling and trimming. The high absorption grants lower power and time required to perform the job, as well as minimum unwanted back reflections from the solder pad, thus leading to a fast and safe process.

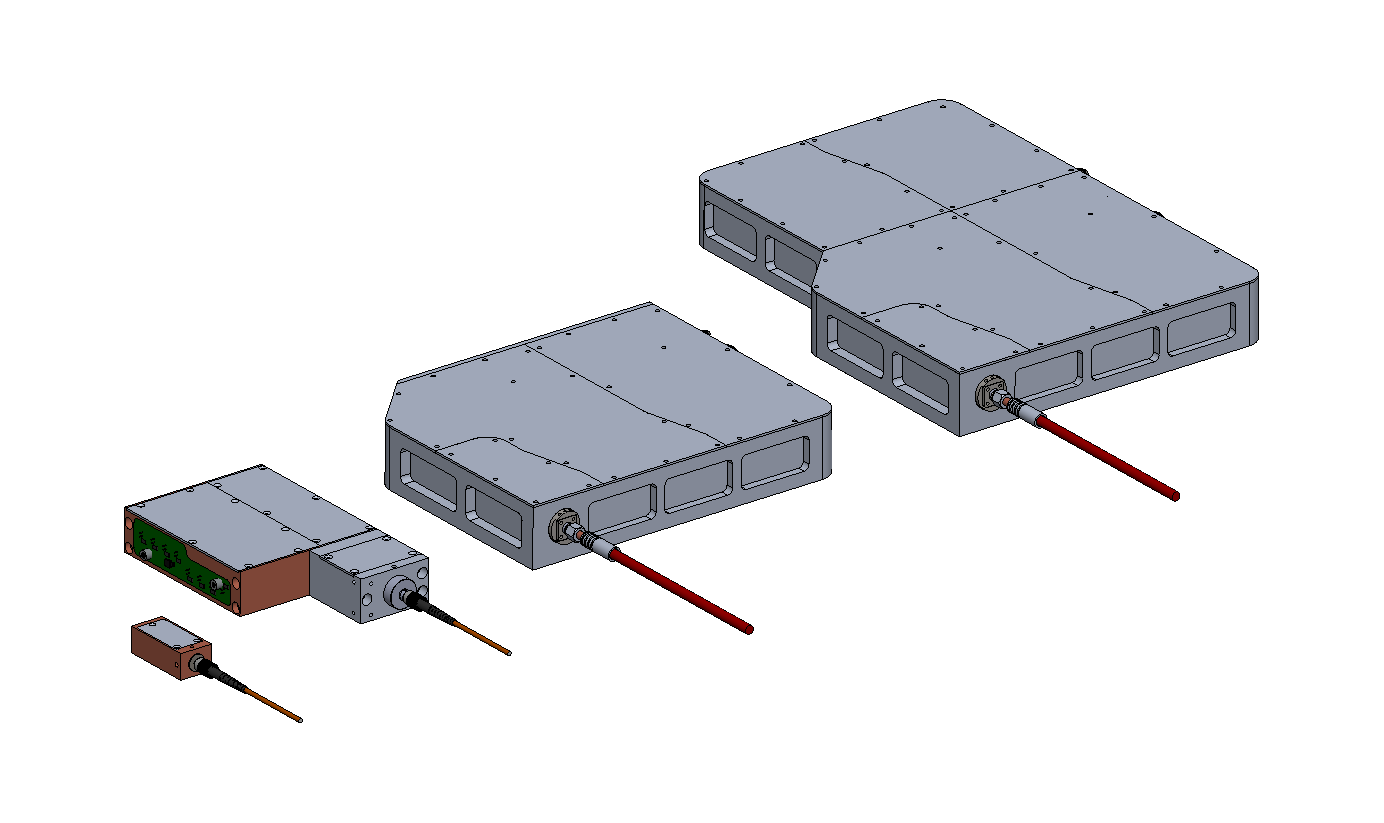

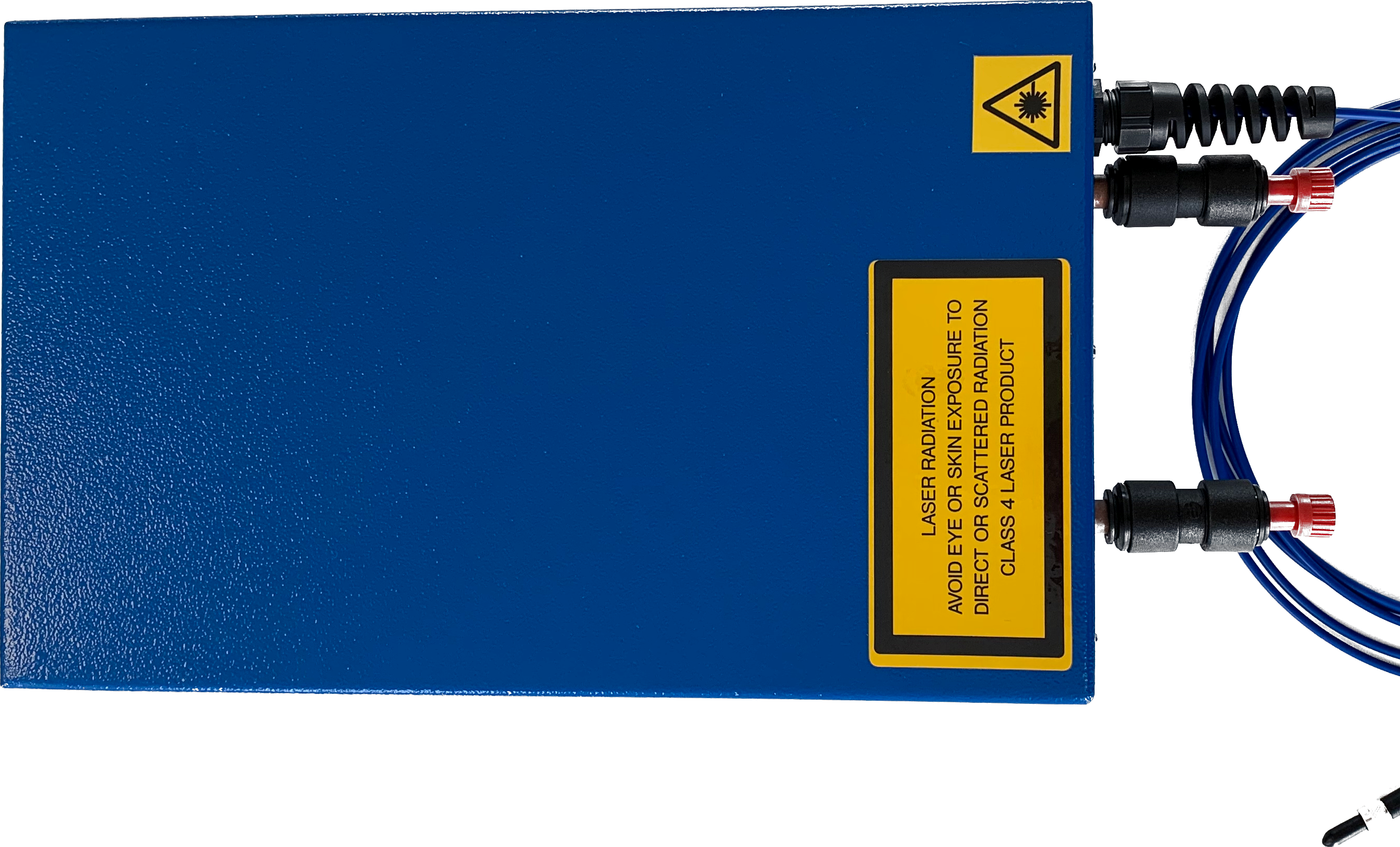

Fiber coupled 35W

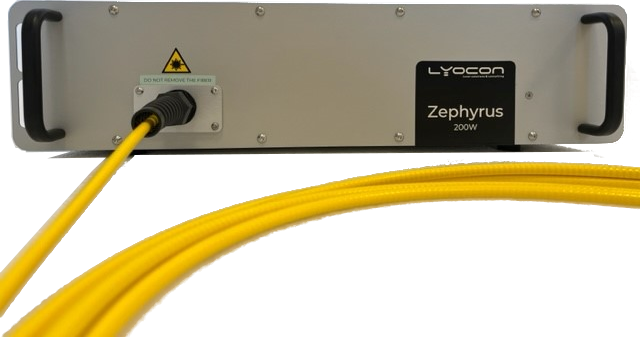

200W version
Advantages & Benefits
- Valid substitute to state-of-the-art IR lasers: much lower power densities required for same processing
- Round homogeneous spot on working area
- Reduced thermal stress on solder pad
- Minimum unwanted back reflections
- Ease of integration
- Very high processing speed
- No consumables: expected lifetime > 30.000 hours
Applications
- Soldering of THT and SMD components
- Depaneling
- Trimming
- Welding of thin wires
PCB Depaneling
Blue laser power scale ranging from 5W to 200W
Technical Specifications
| Wavelength | 450 nm | ||||
| Wavelength range | 440/460 nm | ||||
| Output power fiber coup CW | 5W | 35W | 50W | 100W | 200W |
| Fiber NA | 0.22 | ||||
| Fiber core (min)* | 100 um** | 100 um | 200 um | 200 um | 200 um |
| Fiber connector | FC / SMA | FC/D80 | D80 | D80 | D80 |
| Operating current | < 3.8A | ||||
| Operating voltage (1 channel) | <5 | <40 | <30 | <30 | <30 |
| N° of channels | 1 | 1 | 2 | 4 | 8 |
| Cooling | Air | Water | Water | Water | Water |
| Operating temperature*** | +15/+30 °C | ||||
| Storage temperature*** | -20/+60 °C | ||||
| Available or customizable Options | Different fiber types Coupling into scanning head Fixed or variable focusing heads | ||||
| Applications | Diagnostic Sensing Pumping Dental Physiotherapy | PCB soldering Projection Plastic welding Pumping Stereolithography | PCB soldering Projection Plastic welding Pumping Stereolithography | PCB soldering PCB cutting Projection Plastic welding Stereolithography | Soldering Cutting Projection Welding Stereolithography |
| Markets | Medical Industrial Defense | Electronics Defense 3D printing | Electronics Defense 3D printing | Electronics Industrial 3D printing | Electronics Industrial Battery |
*Optical fiber not included
**Special model 4W in 50um NA 0.12 fiber
***Not-condensing environment
