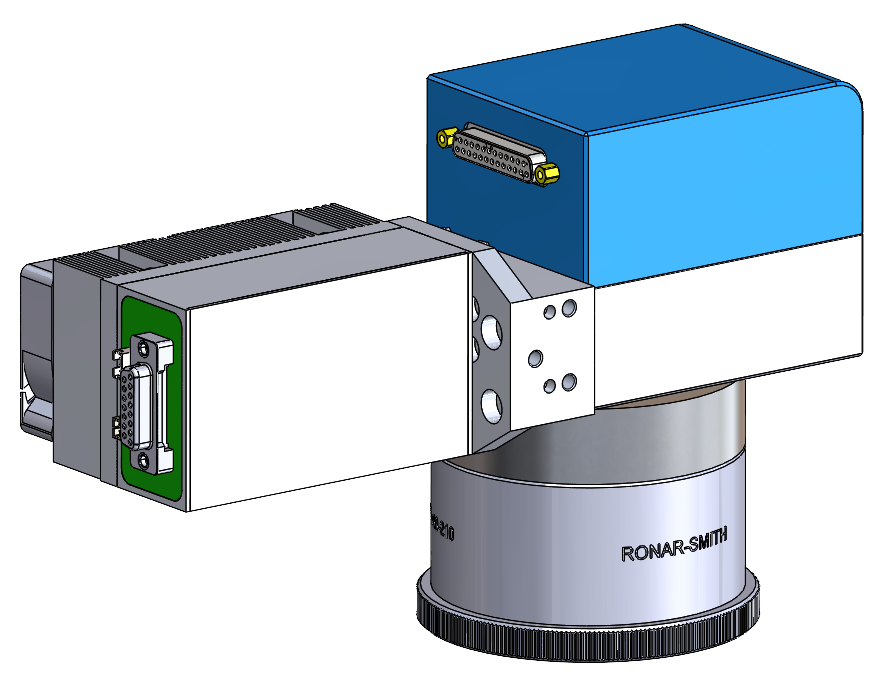

Irys 10W lateral view
THE FIRST BLUE LASER FOR GALVO AND PLOTTER MARKING SYSTEM

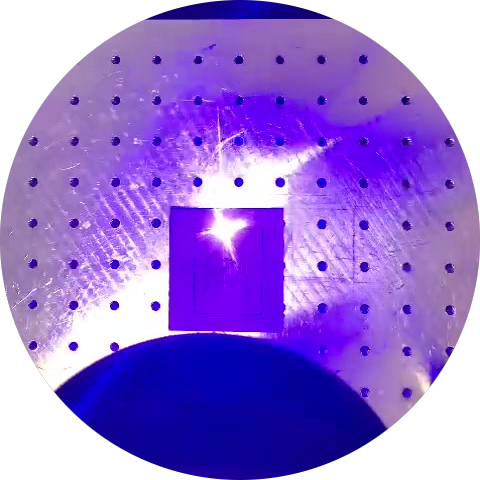

Thanks to the strong absorption of BLUE radiation by the materials, IRYS series laser systems are ideal for dynamic soldering of pcb components with arbitrary shape, precision treaceability marking on pcb boards, cardboard / paper / wood / leather marking, decorating & cutting, direct marking on organic materials (eco-marking), labelling and security marking for packaging and pharma, as well as thin coating ablation / marking.
HIGH PRECISION AND FOCUSABILTY WITH A SUPER SYMMETRICAL SPOT
Our Blue lasers allow high quality marking applications in all directions thanks to the very symmetrical spot.
Go further with the new IRYS 10W: new applications now covered, as very high-speed traceability marking (industrial pallets labelling) and extremely precise – variable geometries soldering of PCB components. Less than half the power, more than double processing speed! (compared to 6W model)
Advantages & Benefits
- Valid substitute to CO2 lasers: much less power required for same processing
- Sharp trace, symmetrized spot shape
- Extremely compact size & very low cost
- Ease of integration
- Very high processing speed
- No consumables
- Long lifetime
- Highly symmetrical spot with more than 95% ellipticity
- High focusability
- High precision marking
Irys laser’s spot profile

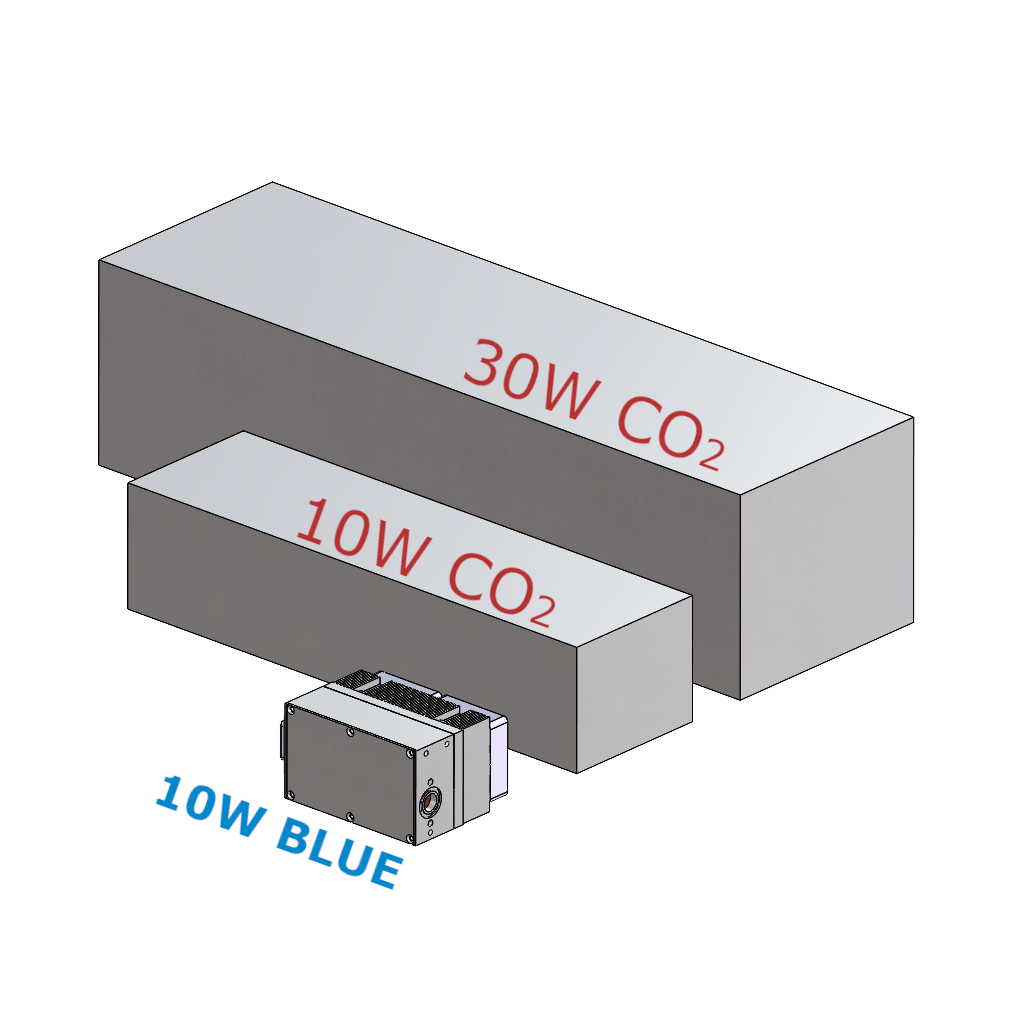

Irys 10W vs CO2
Being the blue 450nm radiation strongly absorbed by many materials often processed with CO2 lasers, our IRYS 10W system can be a valid substitute to 10.6μm radiation where small volume occupancy and low consumption are key points. With its very high processing speed, IRYS 10W can be compared to a state-of-the-art 20/30W CO2 marking system, but with about one-tenth of volume occupancy, thus making integration incredibly simple and efficient.
Technical specifications
| OEMKR | OEM | PLOTTER | |
|---|---|---|---|
| Technology | Direct Diode | Direct Diode | Direct Diode |
| Wavelength | 450nm BLUE | 450nm BLUE | 450nm BLUE |
| Output Power | 10W | 10W | 10W |
| Operational Mode | CW | CW | CW |
| Marking Area | 120x120mm2 | – | – |
| Aiming Beam (optional) | 640nm RED | 640nm RED | 640nm RED |
| Rack Dimensions | 266x174x43mm | 164x136x37mm | 164x136x37mm |
| Laser Module dimensions | 114x60x86mm | 114x60x86mm | 114x62x86mm |
| Includes | Scanning head – 10mm aperture F-theta lens-working area 120x120mm Driver+temperature controller Marking software(basic license) | Driver+temperature controller | Driver+temperature controller Focusing Optics for PLOTTER version |

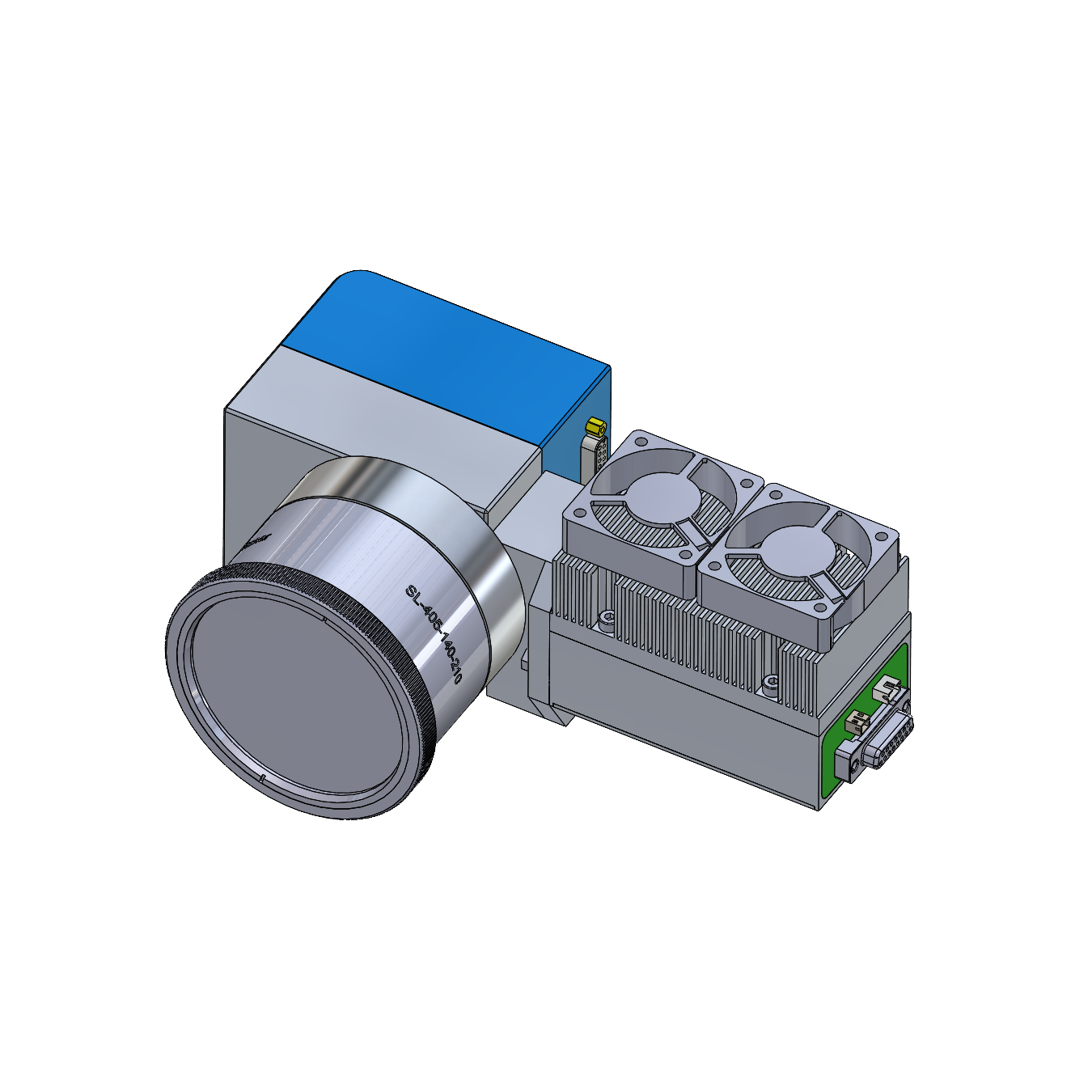

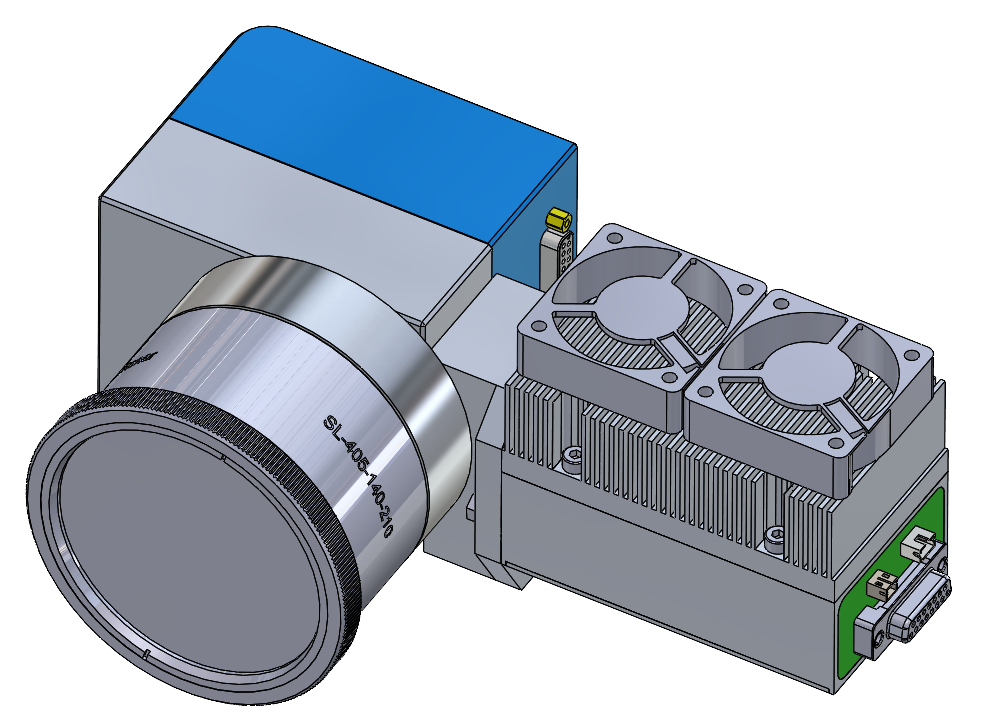

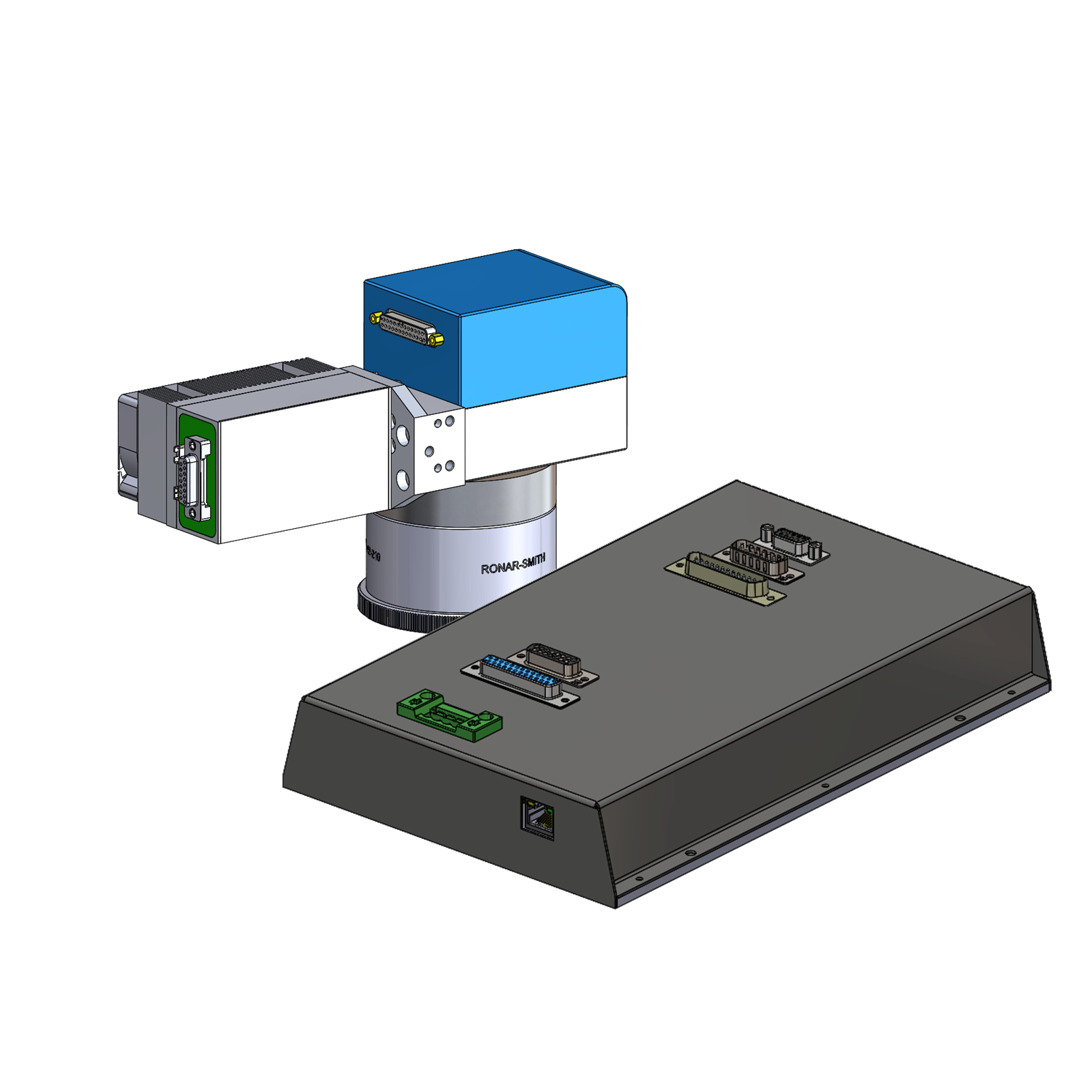

Irys 10W OEMKR version

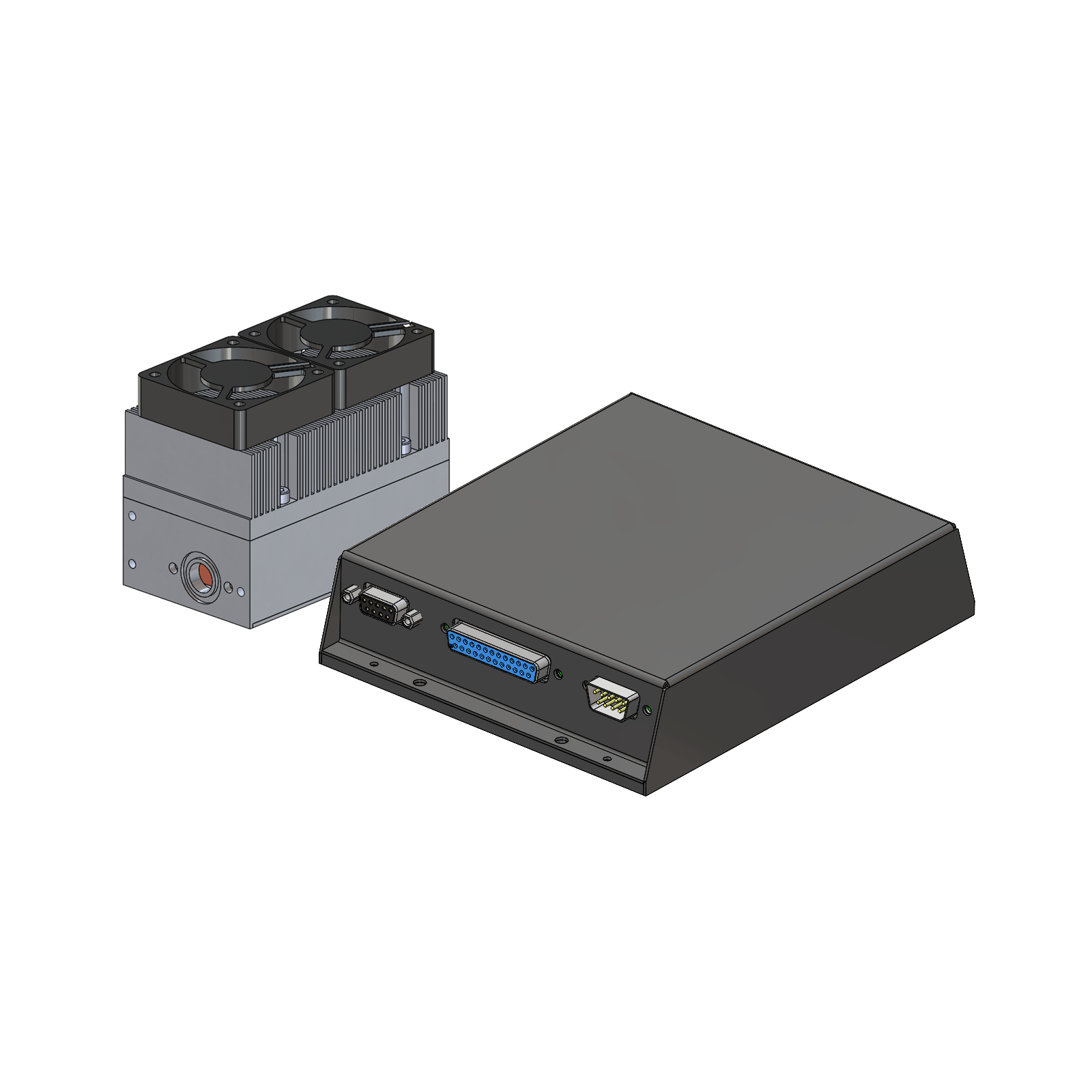

Irys 10W OEM version

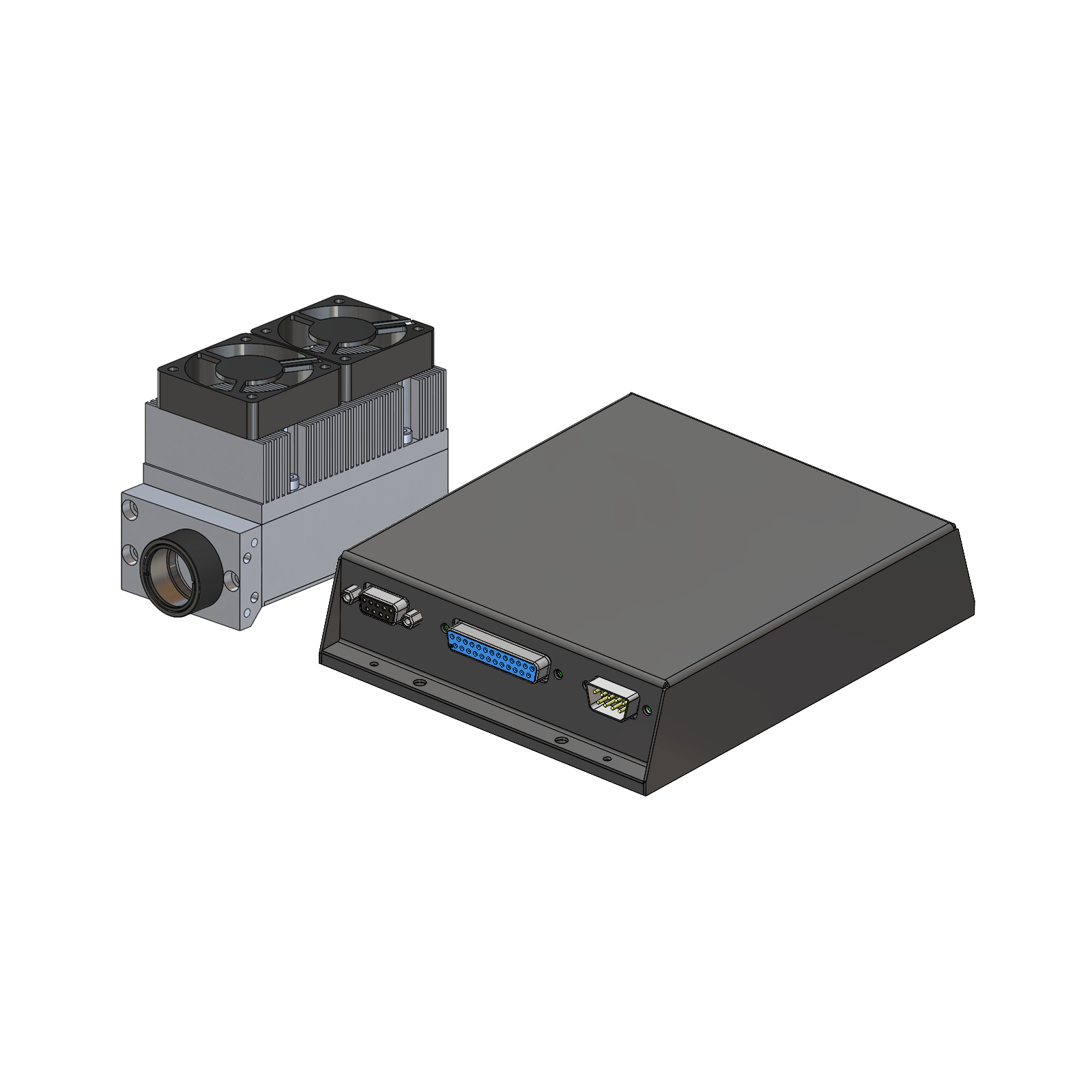

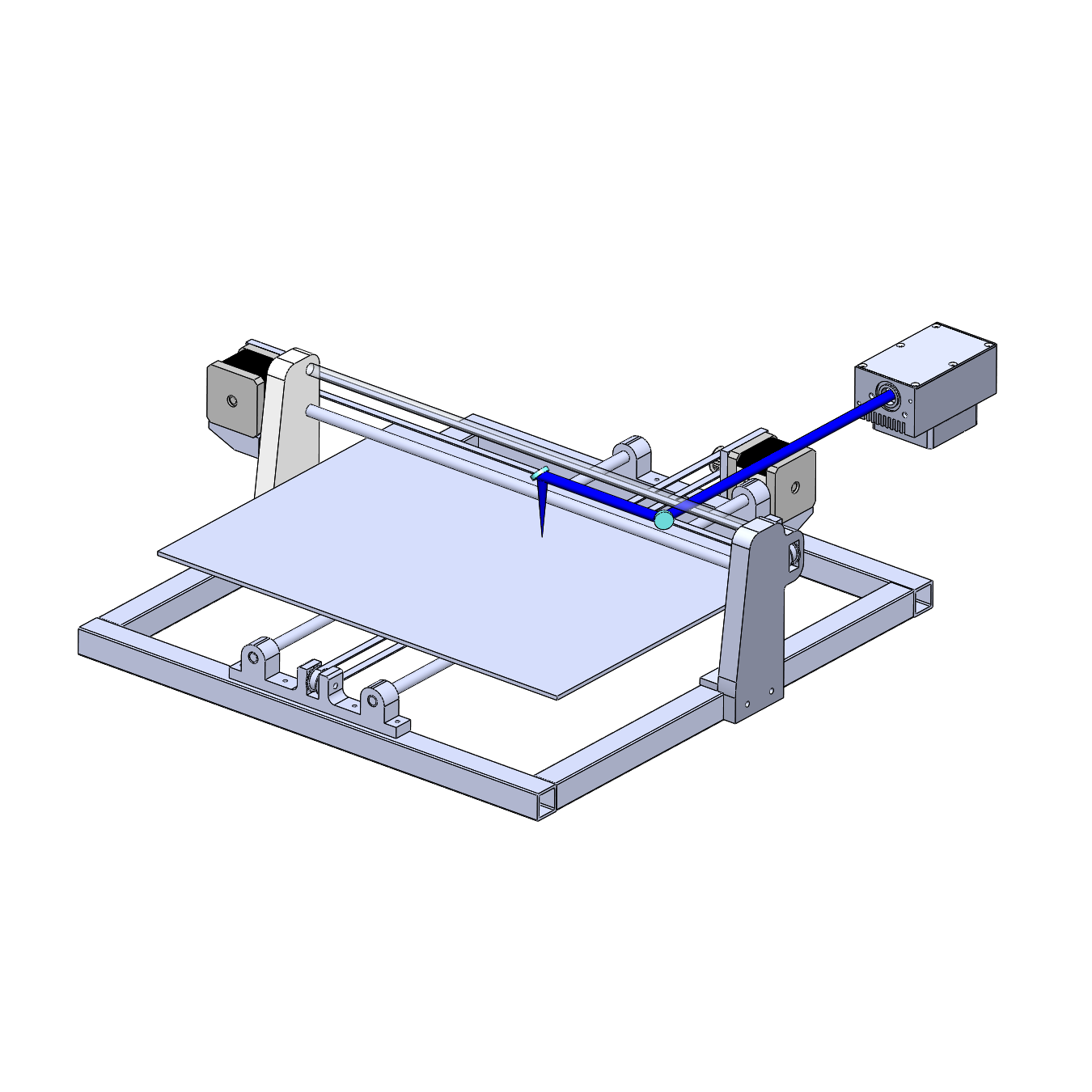

Irys 10W PLOTTER version
