SINGLE/DUAL-WAVELENGTH VIS/NIR LASER DIODE FIBER-COUPLED MODULE
LDM is a family of OEM fiber coupled diode laser modules specifically designed for medical applications. Available as single or dual wavelength configuration, it covers the whole visible and near-infrared radiation range, thus being suitable for a variety of treatments. Equipped with temperature sensor, photodiode, aiming beam and fiber detect sensor, compact and designed for flexible customization, LDM is the perfect choice for your medical equipment.
![](https://www.lyocon.com/wp-content/uploads/2022/04/Rendere_03.png)

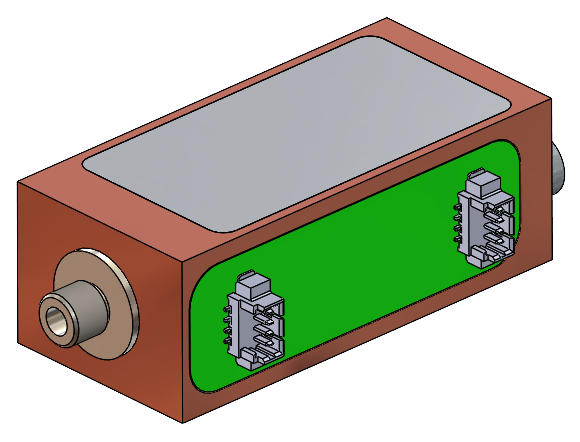

LDM single wavelength
![](https://www.lyocon.com/wp-content/uploads/2022/04/Rendere_02.png)

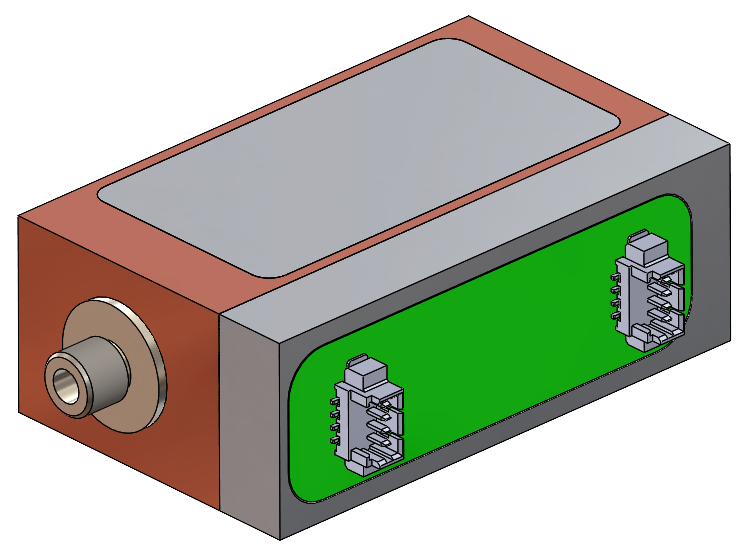

LDM dual wavelength
Advantages & Benefits
- One module for different wavelenghts and optical powers
- Medical, Physiotherapy, Dental & Veterinary applications
- Extremely compact size single/dual-wavelength technology
- Ease of integration
- Expected lifetime > 10.000 hours
General specifications
Output powers | • up to 12W @ NIR • up to 6W @ VIS |
Optical fiber delivery | 200µm NA 0,22 – SMA coonnector (as standard) |
Module dimensions | 60x25x19mm3 |
Available options | Fiber detect – NTC – Photodiode – Aiming Beam |
Choose your own LDM configuration
LDM is available as single wavelength module (Primary λ) or combination of two wavelengths as described by table below: the optical power indicated refers to the maximum available diode power at that specific wavelength.
![](https://www.lyocon.com/wp-content/uploads/2021/01/LDM-lambda-table.png)
• Combination of two diodes of same wavelength is possible to double the optical power (available upon evaluation).
✔ Other wavelengths, combinations of wavelengths and fiber core diameters are available upon request.
